Induction Installation Instructions
Please note: If you need a DXF file please email [email protected]
To ensure maximum inductive efficiency, please make sure that your cookware never exceeds the diameter of the coil.
Our exceptional induction technology offers pan size recognition resulting in no power waste for smaller pan size and the highest power when you need it most as with all large pan size option for each burner.

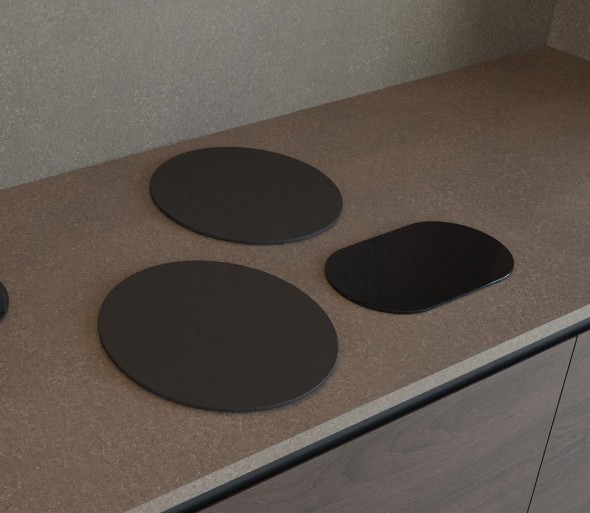

You have your choice of medium and large burner configurations:
Induction Installation Instructions
Please note: If you need a DXF file please email [email protected]
To ensure maximum inductive efficiency, please make sure that your cookware never exceeds the diameter of the coil.
Large Burner: 11 3/4" | 3,000 Watts
Medium Burner: 10 5/8" | 1,700 Watts
Control Panel: Measures 10.8" x 6"
Electrical Requirements: 220 Volts, 1P + N with 40 amps. PLEASE BE SURE NO NEUTRAL/WHITE WIRE IS CONNECTED.
Minimum Countertop thickness: .75”
*Underneath your induction glass, there is a generator, that is about 3 to 4 inches.
Minimum distance between burners: 3"
| 1st Burner | Large, Medium |
|---|---|
| 2nd Burner | Large, Medium |
| 3rd Burner | Large, Medium |
| Burner Type | Induction |
| Energy Requirement (volts) | 220 |
| Number of Burners | 3 |
